ORIGINAL TECHNICAL SPECIFICATION
(1972 approximately)
YACHT "SZMARAGD II"
General
| Length overall |
9,70 m |
| Length waterline |
7,65 m |
| Beam | 2,75 m |
| Draft | 1,50 m |
| Displacement | 4,00 t |
| Area of Sails | 32 sq m |
| Rig Type | Sloop |
Description of construction and outfit
| Hull | moulded from glass fibre reinforced polyester resin |
| Construction Stiffenings | glass fibre reinforced polyester profiles and laminated pine sawn timber or mahogany |
| Ballast | encapsulated cast iron keel |
| Deck | watertight plywood mocked - up with peroba planking rubber compound caulking |
| Superstructure | mahogany sawn timber walls ; the roof is made of watertight mahogany plywood coated with mahogany battens ; rubber compound caulking |
| Cockpit | self-draining type |
| Interior | mahogany sawn timber, watertight plywood ; pantry and WC lined with UNILAM tiles |
| Masting | pine or spruce sawn timber |
| Mast & Deck ferrules | stainless steel, brass |
| Rigging | stainless steel and synthetic ropes |
| Water tanks | stainless steel sheet |
| Upholstery | vulcanized hair ; decorative fabric |
| Paints | polyurethane lacquers |
| Electric installation | 12v |
| Motor | 7 - 15 HP Volvo |

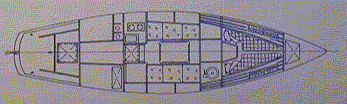

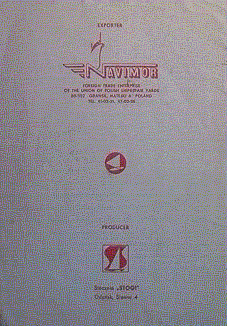

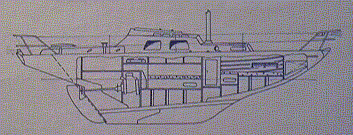

Photographs of the Original Specification Brochure.
 |
 |
 |

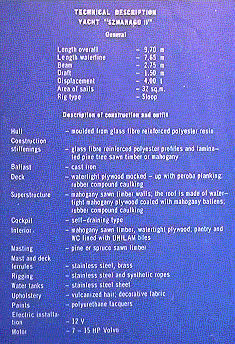

The contents of the 'blue' page to the left is within the Tables at the top of this page |
